Professional collar for small and medium dogs: the D-control Professional mini

Training collars D-control Professional mini are designed primarily for sport and service dog training. However, they can also be used in everyday use by ordinary users. One of the great advantages is that the Professional mini models have all functions in several levels - sound, light, vibration and stimulation pulse. The functions can be freely set on each button. With the size of the receiver and the strength of the stimulation pulses, the Professional mini is particularly suitable for small and medium-sized dog breeds. Two different receivers can be controlled by the transmitter. The transmitter is made of high quality material with rubberized elements that increase impact resistance. The Professional series is waterproof and thus suitable for outdoor use. With a range of 1000 or 2000 m, this model allows individual adjustment of the function of the four buttons. Each button can be set to one of the following functions: acoustic signal, stimulation pulse in 40 levels (short and long), vibration or light.

The main functions:

  • 1000m or 2000m (depending on model)
  • Small and lightweight receiver
  • Shockproof transmitter design
  • Light, vibration, stimulation pulse and sound functions
  • Possibility of training 2 dogs
  • Freely adjustable function buttons
  • Possibility to pair two transmitters not one receiver



How does the collar help you?

  • Training collars help you teach your dog to walk at your feet without a leash
  • Establish a reliable recall in all circumstances
  • Stop the dog and teach it to run after game (commands "stay", "to me", "to my leg" and "stay"), other dogs or people
  • Unlearn pulling on the lead,
  • Interrupting unwanted dog activities ("yuck", "you mustn't") - unlearning bad habits in everyday interaction with people, e.g. taking food from the table, jumping on people, digging, eating excrement, unwanted barking, howling, etc.
  • Precise training of virtually every command, where the dog must perform it as accurately and reliably as if it were on a (up to hundreds of metres!) long leash
  • The unwanted dependence on the leash is removed, which the dog recognizes very well and adapts its behavior to it



Overview of modes

The collar has sound, pulse, vibration and light correction:

Sound signal: this command can precede the stimulation pulse and is a very effective warning. The acoustic signal can be used instead of the command: to me / to the leg, in this case it replaces the whistle, whose volume is always perceived by the dog in the same way. It is very important to always use the acoustic signal in the same way so as not to confuse your dog. The green indicator light on the receiver is on for the duration of the acoustic signal.

Stimulus: This function allows you to activate an alert in the receiver in the form of safe stimulus pulses transmitted by two contact points located on the receiver. These stimulus pulses will be kept to a minimum over time as the dog will associate them very well with disobeying your command. A red indicator light on the receiver will illuminate while the stimulation pulse is being emitted. When the button is pressed for a long time, the duration of the stimulation pulse is limited to a maximum of 8 seconds. It is important to choose the correct intensity of the stimulation pulse for your dog, so it is finely adjustable in 20 levels. As every dog is differently sensitive, it is not possible to estimate the correct pulse level in advance.

Light function: You can set different flashing speeds for two collars at the same time so that you can recognize your dogs in the dark.

Vibration function: It is used for sensitive dogs or for training dogs with hearing impairment. A red indicator light on the receiver glows while the vibration command is in use.


Choice of contact points

Stainless steel contact points are used to ensure the transmission of stimulation impulses from the receiver to the dog's skin. The package contains two types - 12 and 17 mm. If your dog has short hair, use short contact points. If you have a dog with longer or thicker hair, choose the longer ones. Screw the contact points onto the receiver screws.

If your dog's coat is too long, it is possible to order contact points with a length of 21 mm from our e-shop.


For which dogs is it suitable

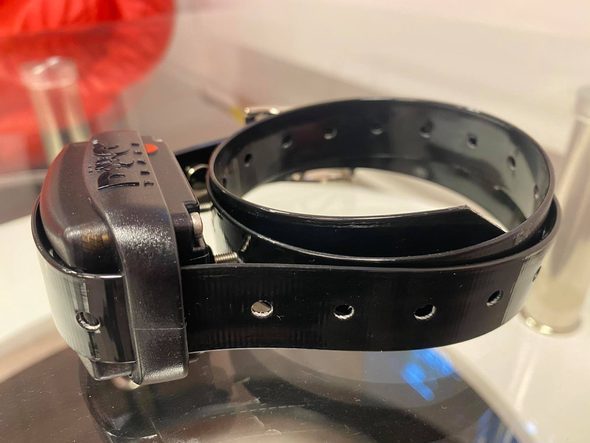

The dimensions of the D-Control Professional receiver are only 61 × 40 × 31 mm with a weight of 45 g, the collar is adjustable in length from 20 to 72 cm. The Professional mini models are designed for small and medium sized dog breeds, but will be sufficient for most large breeds. Its size is suitable for dog breeds such as: beagle, cocker spaniel or brothel collie. We offer Professional ONE size, which is designed for small breeds - dachshund, Yorkshire terrier, or Professional for large breeds - Rottweiler, Great Dane, German Shepherd, Setter.


Functionality testing

How to check the correct function of the stimulation pulse?

The correct function of the stimulus pulse command can be tested using the test lamp that is included in the package.

  • Make sure the receiver is switched off
  • Connect the test gag pins to both contact points - loosen the contact points, insert the gag pins underneath them so that they hold firmly and tighten the contact points again
  • Switch on the transmitter and receiver
  • Press the button for the stimulation pulse
  • As the level of the stimulation pulse increases, the test gag will increase in luminosity


Battery life

The D-control Professional mini transmitter is powered by 2x AAA 1.5V batteries. The receiver is equipped with a 3V battery marked CR2 3V. The transmitter lasts 6-12 months in operation, the receiver 3-6 months, depending on use. Batteries are included in the package, however, replacements can be purchased in our store. We recommend buying high quality Dogtrace or Energizer batteries.


Trouble advisor

  • Check that the batteries are inserted with the correct polarity
  • If the transmitter does not communicate with the receiver, try pairing the devices again
  • If the dog does not seem to be responding to the stimulation pulses: check again that the battery in the receiver is not weak, test the functionality of the receiver with a test gag, check that you have chosen the correct length of the contact points, if the dog has dry skin, moisten it.
  • The correct function of the short/long pulse can be tested with a test lamp



Never use volatile substances such as thinner, petrol or other cleaning agents to clean your D-control Professional mini. Use a soft, damp cloth and, if necessary, a neutral detergent. The transmitter and receiver (collar) is only watertight provided the seal is in good condition. To maintain the watertightness of the transmitter and receiver, we recommend replacing the rubber gasket under the battery compartment cover of the transmitter and the receiver cover once a year. Also, make sure to properly clean and align the seals after each battery change in the receiver and to tighten the screws properly. However, only tighten them with reasonable force!

If you do not use the training set for a long period of time, remove the batteries from the device.


Product photos


Technical parameters of the product

Here are the complete technical parameters for the Dogtrace Professinal mini electronic training collar from VNT Electronics.




1000/2000 m ( depending on model)


2x AAA 1.5V alkaline batteries

    Battery life

6-12 months depending on use

    Frequency (power)

869.525 Mhz (100/500mW-depending on model)





    Operating temperature

–10 °C to +50 °C


125 grams (without battery)

    Transmitter dimensions

113 × 53 × 29 mm





CR2 3V lithium battery

    Battery life

6 months depending on use


869,525 Mhz





    Adjustable circumference

approx. 20 to 72 cm


45 grams (without battery)

    Dimensions of the receiver

61 × 40 × 31 mm


Advantages and disadvantages of Dogtrace D-control Professional mini

Production and service in the Czech Republic, extended warranty 3 years   No booster function
Submersible receiver
Separate button for each function
Very light receiver
Backlit LCD display
Long battery life
Type of correction - sound, pulse, vibration, light
Long battery life

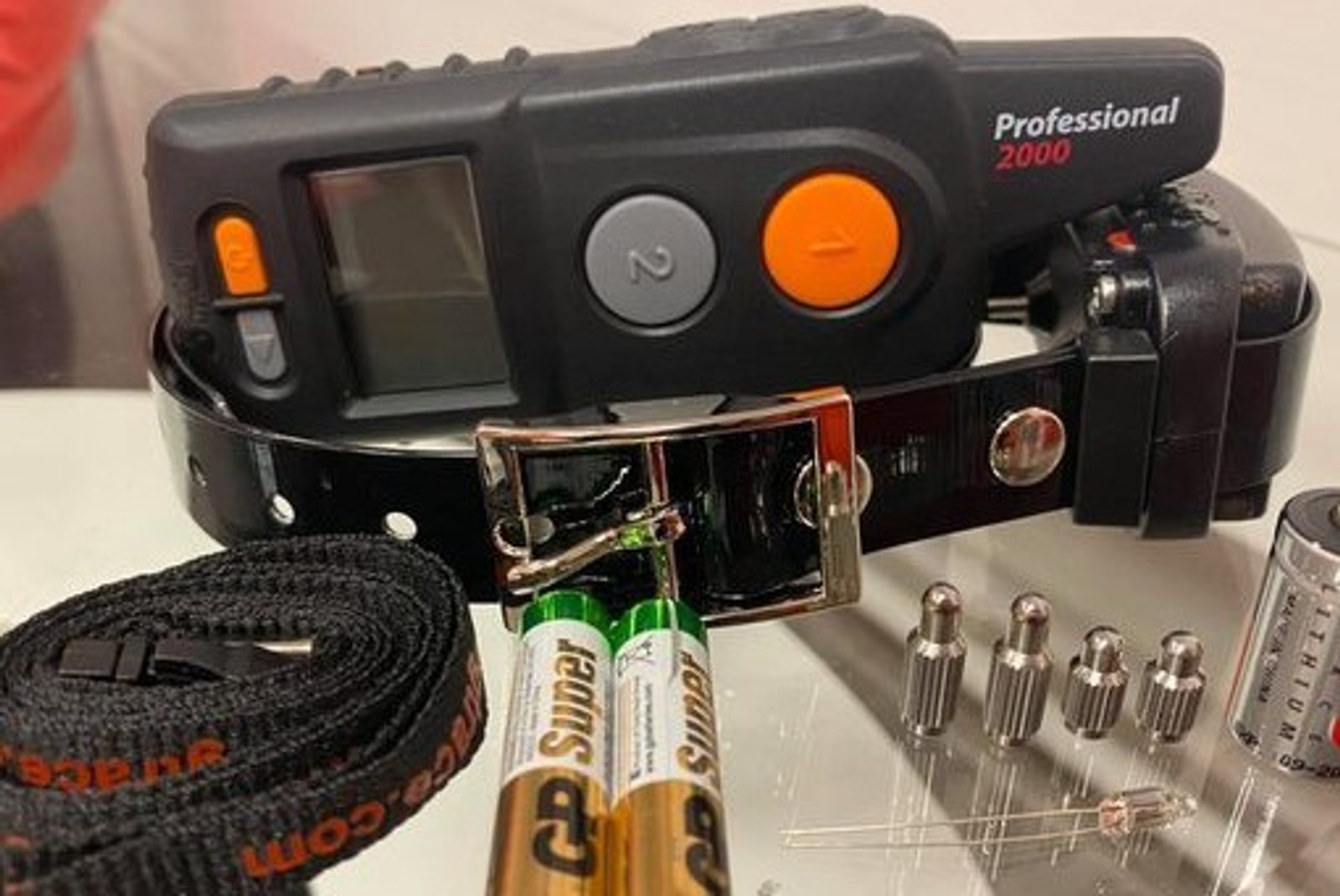

Package contents

  • Transmitter
  • Clip for hanging the transmitter on the belt and 2 screws
  • Receiver
  • Collar
  • 12 mm electrodes
  • Electrodes 17 mm
  • 2x AAA batteries
  • CR2 3V battery
  • Test lamp
  • Lanyard for hanging the transmitter on the neck
  • Case
  • Instructions
